Open the catalogue
Twenty-five pages of working data. Tell us who you are and it opens straight away — read it here in the browser, or take the PDF. We do not add anyone to a mailing list.
What is in it

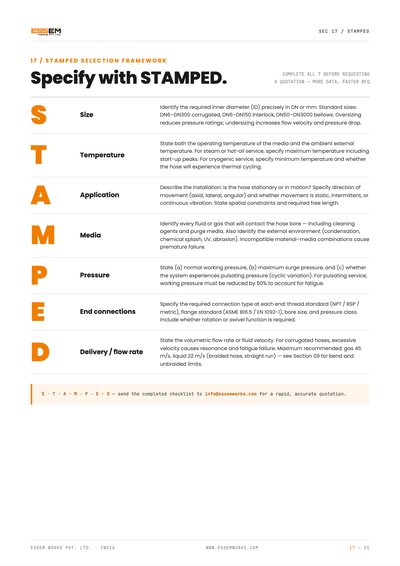

Twenty-five pages, written to be used rather than skimmed. If you only read one page, read 17 — the STAMPED framework: the seven things an engineer needs to size an assembly correctly, in the order we ask for them.
Contents

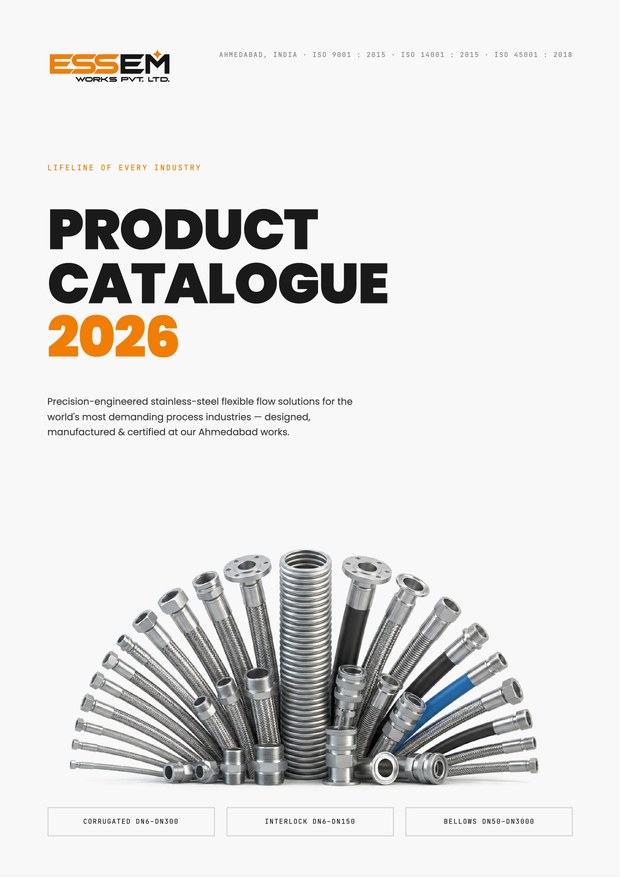

- 01 Cover
- 02 Contents — three product families, one standard
- 03 About Essem Works
- 04 Quality & certifications — ISO 9001, 14001, 45001

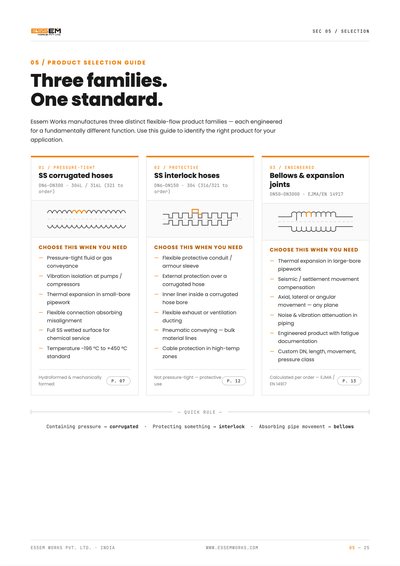

- 05 Product selection guide
- 06 Industries & applications
- 07 Family 01 — SS corrugated flexible hoses, DN6–DN350

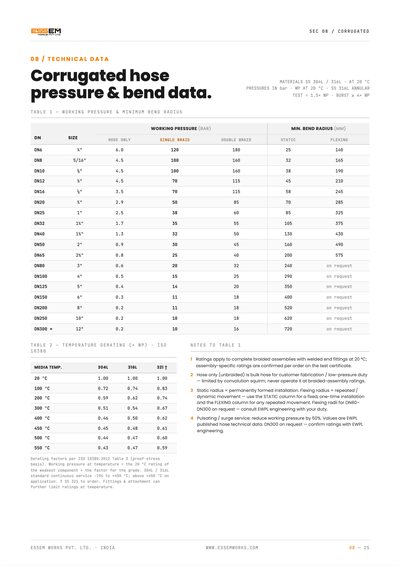

- 08 Corrugated hose pressure & bend data
- 09 End connections & flow limits
- 10 Hose length & movement
- 11 Installation & service life
- 12 Family 02 — SS interlock flexible hoses, DN6–DN200
- 13 Family 03 — SS bellows & expansion joints, DN50–DN3000
- 14 Bellows assembly configurations
- 15 Material reference — stainless grades & superalloys
- 16 Media compatibility guide
- 17 STAMPED selection framework
- 18 Enquiry data sheet
- 19 Inside the works
- 20 The shop floor

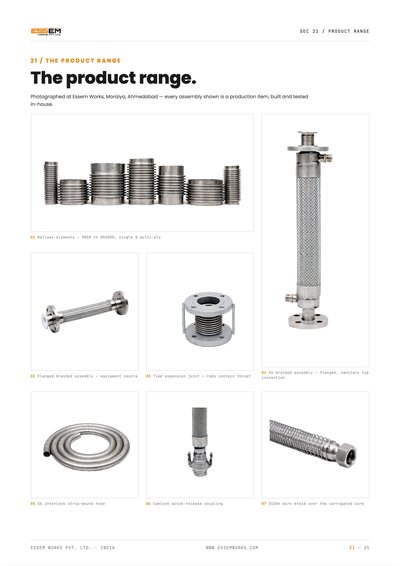

- 21 The product range
- 22 Built to order
- 23 QA, testing & how to order
- 24 Glossary & units
- 25 Contact
The three families, in one line each
Corrugated hose
Thin-wall annular corrugated tube with a braid over it. Takes pressure and random movement. DN6 to DN350 in the catalogue.
Corrugated hose →Interlock hose
Strip-wound, unpressurised. For abrasion, dust, hot solids and mechanical protection. DN6 to DN200.
Interlock hose →Bellows & expansion joints
Pressure-containing elements sized to a movement, not to a length. DN50 to DN3000.
Expansion joints →Prefer to just ask?
Send the duty and an engineer will answer — pressure, temperature, media, movement and end connections are enough to start.
