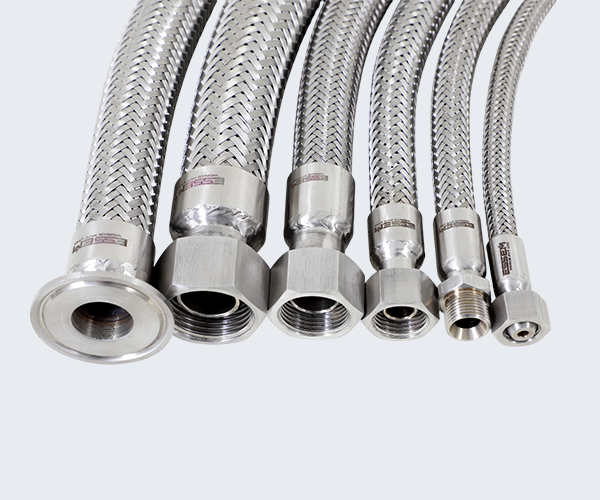

Flexible Braided and Unbraided Metal Hoses

Flexible Metal/Metallic hose supplier in Ahmedabad

These hoses offer flexibility and durability. They come in both braided and non-braided variations. Key features include:

  • Durability: Made from stainless steel, these hoses have a long product life.
  • Versatility: They can be used in moving parts without compromising performance.
  • High Pressure and Temperature: These hoses can handle challenging conditions.
  • Ease of Assembly: They are straightforward to install.
  • Hygienic: Suitable for applications where cleanliness is crucial.
  • Customizable Lengths: We can manufacture hoses up to 100 meters in one piece, tailored to your needs.

Applications:

  • Machinery industry
  • Iron and steel industry
  • Pharmaceutical industry
  • Chemical industry
  • Hot and cold water pipelines
  • Steam pipelines

DESIGN SPECIFICATIONS:

  • Without Braid
  • Hose Material: 304L, 316L, 321
  • Working Pressure: 0-10 kg/cm²
  • Sizes: DN6-DN50
  • With Braid
  • Braid Material: 304L, 316L
Flexible Braided and Unbraided Metal Hoses Drawing
Unbraided
Flexible Braided and Unbraided Metal Hoses Drawing
Braided
DN d1 d2 Tolerance "Bend Radius With Wire Braiding TYPE 1 AND 2
(BRAIDED)"		 "Bend Radius Without Wire Braiding TYPE 3
(UNBRAIDED)"		 Working Pressure
mm inch mm mm mm mm mm mm
6 1/4″ 6,3 9,6 ± 0,2 25 12 10
8 5/16" 8.2 12.2 ± 0,2 32 16 10
10 3/8" 10.3 14.2 ± 0,2 38 20 8
12 1/2” 12.1 16.7 ± 0,2 45 25 8
16 5/8” 16.2 21.6 ± 0,2 58 25 8
20 3/4" 20.3 26.8 ± 0,2 70 30 6
25 1" 25.3 32.3 ± 0,3 85 45 6
32 11/4" 34.3 41.1 ± 0,3 105 60 2.5
40 11/2" 40.2 49.8 ± 0,3 130 80 2.5
50 2" 50.3 60.4 ± 0,4 160 100 1.6
Flexible Braided and Unbraided Metal Hoses-1
Flexible Braided and Unbraided Metal Hoses-2
Flexible Braided and Unbraided Metal Hoses-3
DN d1 d2 Tolerance "Bend Radius With Wire Braiding TYPE 1 AND 2
(BRAIDED)"		 "Bend Radius Without Wire Braiding TYPE 3
(UNBRAIDED)"		 Pressure at ambient temperature
Working Pressure Test Pressure
mm inch mm mm mm mm mm Kg /cm2 Kg /cm2
6 1/4" 6.3 10.8 ± 0,2 110 140 120 180
8 5/16" 8.2 13.7 ± 0,2 130 165 100 150
10 3/8" 10.3 15.7 ± 0,2 150 190 90 135
12 1/2” 12.1 18.1 ± 0,2 165 210 80 120
16 5/8” 16.2 23.2 ± 0,2 195 250 70 105
20 3/4" 20.3 28.4 ± 0,2 225 285 64 96
25 1" 25.3 34.4 ± 0,3 260 325 50 75
32 11/4" 34.3 43.2 ± 0,3 300 380 40 60
40 11/2" 40.2 52.2 ± 0,3 340 430 35 52.5
50 2" 50.3 62.7 ± 0,4 390 490 30 45
